Roll Label Digital Varnish UV Printing and Cold Foiling Machine
EcooSpark is the digital UV varnish printing embellishment machine It is the ideal equipment for digital printing machines such as HP Indigo, Screen L350, KM Accurio, Xeikon, Durst and more.
By more than 5 years experience, EcooSpark gains lots of positive feedbacks from customers with perfect performance and unit strength.
The machine can do spot coating,cold foilding,relief varnishing,braille printing,variable data and so on.
Applications
Wine Labels, Cosmetic Labels, Luxury labels, Washi tapes, braille printing, toothpaste tube foiling and more.
Innovation and Intelligent Manufacturing
By the Utilizing PiezoDOD inkjet print head technology, this press delivers high-quality labels at 1440*360 DPI native resolution, speeds up to 50m/min, and print widths up to 450mm.
Key Machine Configurations
- Full Sets of Mitsubishi servers
- HeFeng Corona Treatment
- Web guide and Monitoring System: E+L
- Full Led-UV curing system
- Printing Software: GIS UK
- Auto Cleaning System
- KM 1024i print head
- Multiple sensors for tension control
Available in 288mm, 330mm and 430mm printing width models. Most of our machines have been in reliable operation for about 5 years with no trouble, demonstrating stable and perfect performance that pleases our customers.
Technical Specifications
| Model | EcooSpark |
| Printing Technology | UV Piezo DoD-inkjet |
| Resolution | Up to 1440*360 dpi |
| Printing Speed | 10m/min - 60m/min (depends on polymer layer thickness) |
| Variable Image System | PDF, optimized PDF, Optional barcode system |
| Supported Image Standards | PDF, PDF/VT, TIFF, JPEG, BMP & other database files |
| Substrates | Offset, Digital, Plastics, Laminated and coated substrates |
| Printing Image Width | 288mm (extendable to 450mm) |
| Polymer | WB-DS-Clear Polymer |
| Polymer Layer Thickness | 10-180 microns |
| Ink Curing | Inter UV-LED Pre-curing/Full curing by UV-LED |
| Unwinder Diameter | Max. 700mm, Core 76mm |
| Rewinder Diameter | Max. 700mm, Core 76mm |
| Substrates Thickness | 30-400 microns |
| Substrates Width | 330mm |
| Press with Foil Station Dimensions (L*H*W) | 3500mm * 1900mm * 1800mm |
| Operating Environment | Temperature: 15℃-30℃, Humidity: 40%-80% relative humidity |
| Electrical Requirements | Voltage: 3*380, ±5% 3 phases +G+N
Frequency: 50/60 Hz
Current: Avg. 25 Amps in Production |
| Weight | 2800kg |
EcooSpark enhancement printing machine mainly has the following advantages:
Cost efficiency: There is no need for plate making, the setup time is shorter, and it also has the cost advantage of undertaking end user orders.
Higher quality: High shining surface finish, can be repeatedly stacked, with variable foiling technology, etc., which can be comparable to the traditional post-press process in the production process, and the registration accuracy is much higher than that of traditional printing technology. The "raise effect" or "embossing" effect is achieved by superimposed ink layers, and different heights can be stacked at the same time on the surface of the same substrate.
Environment Friendly: In addition to the short setup time, this is also manifested in terms of simpler operation and VDP design.
Multi-process: High turnover rate, controllable and adjustable, reduce waste, foiling, convex foiling, spot varnish, reverse varnish, Braille and other processes can be completed at one time. Using a piezoelectric inkjet head, a special "digital UV varnish" (a special formulation of transparent UV ink) is sprayed onto the substrate on demand to achieve spot varnish, and the scope and shape of the varnishes are variable. At the same time, the highlight and matte effects can be achieved in a single printing.
Regardless of whether the previous process is offset printing, screen printing, flexographic printing or other printing, EcooSpark can fully digitally realize spot varnish, cold foiling, embossing and other digital enhancement processes, with high efficiency, low cost, high added value and other advantages, can help enterprises quickly complete extremely short to medium length orders, instantly achieve the unique visual effect of printing. In addition, the equipment can also cooperate with traditional printing, digital printing and other post press processes to issue encounter by other process problems, so as to find new profit growth points for printing enterprises.

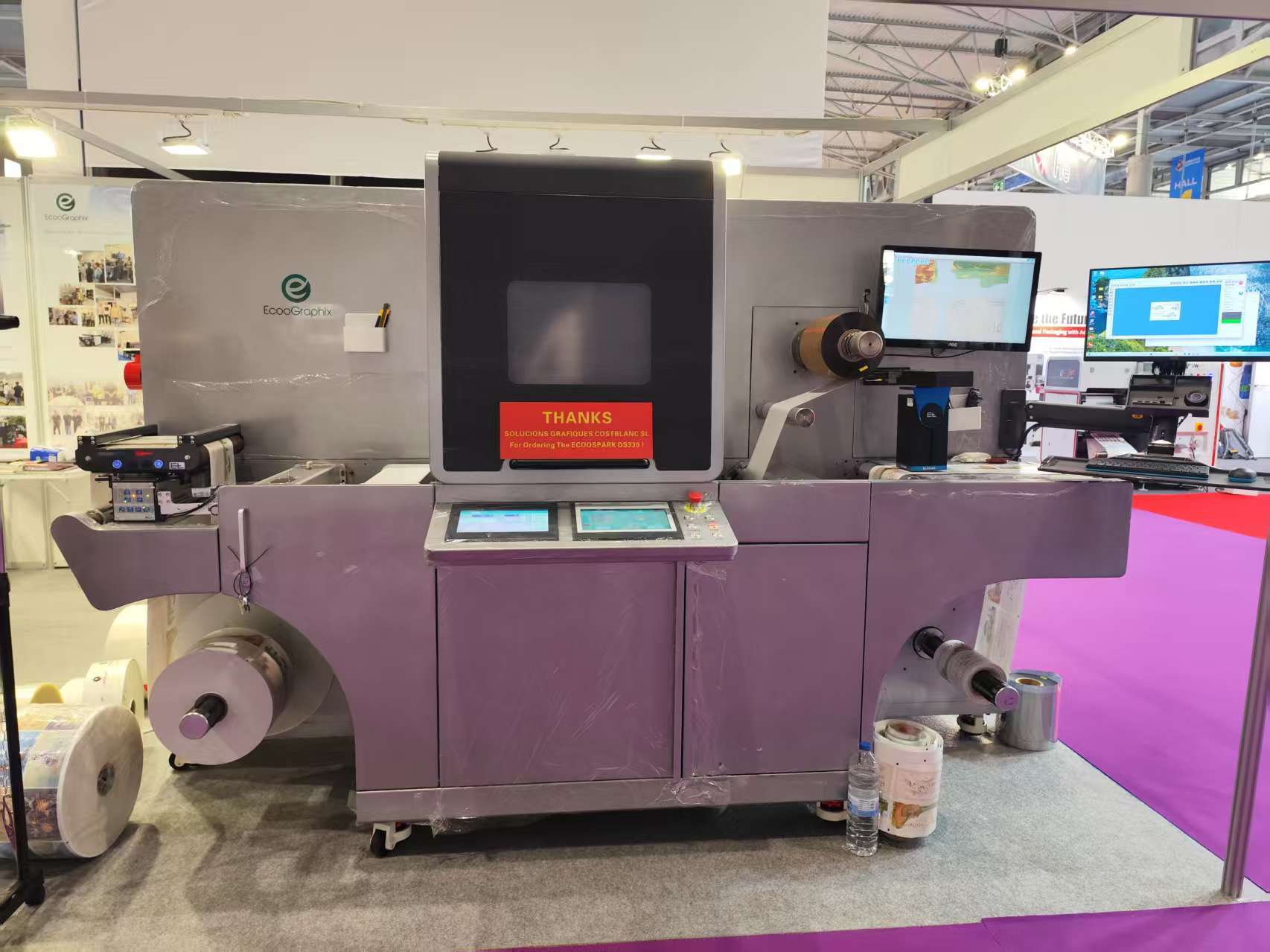

Product Images
